TC3.P Control Hub

TC3.P CONTROL HUB

Complete electrical control hub featuring:
- Atmel 8-bit AVR® RISC-based microcontroller
- Trench-type MOSFET power
- Solid State design for waterproof and shockproof operation
- Four-layer PCB with SMD components
- PTC smart fuse with auto-reset functionality
- LED lighting optimization
- Onboard "fly-back" protection circuit
- AC/DC voltage runaway engine shutdown protection
- Enhanced engine power protection with quick blow fuse
- Color-coded wiring harness
- Ignition coil time-out power-off feature
- Starter motor safety lock-out with anti-grind function
- Maximum crank time-out for starter motor
- Selectable pre-warning brake light flash
- Selectable onboard digital flasher
- Intelligent directional signal light switching
- "PARK" position light feature for brake light
- Master light control for headlight

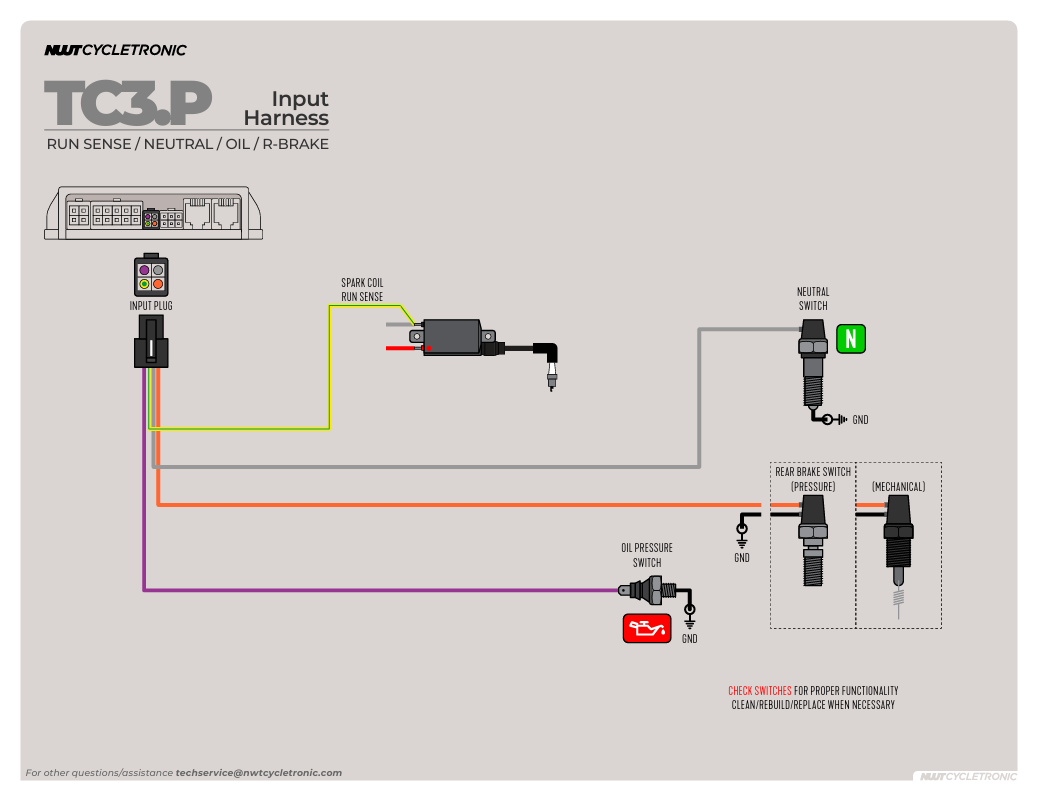

- Sensor input capability
- Standard dash gauge outputs
- Soft start feature for headlight
- Engine run monitoring
- Multi-use power output with internal protection

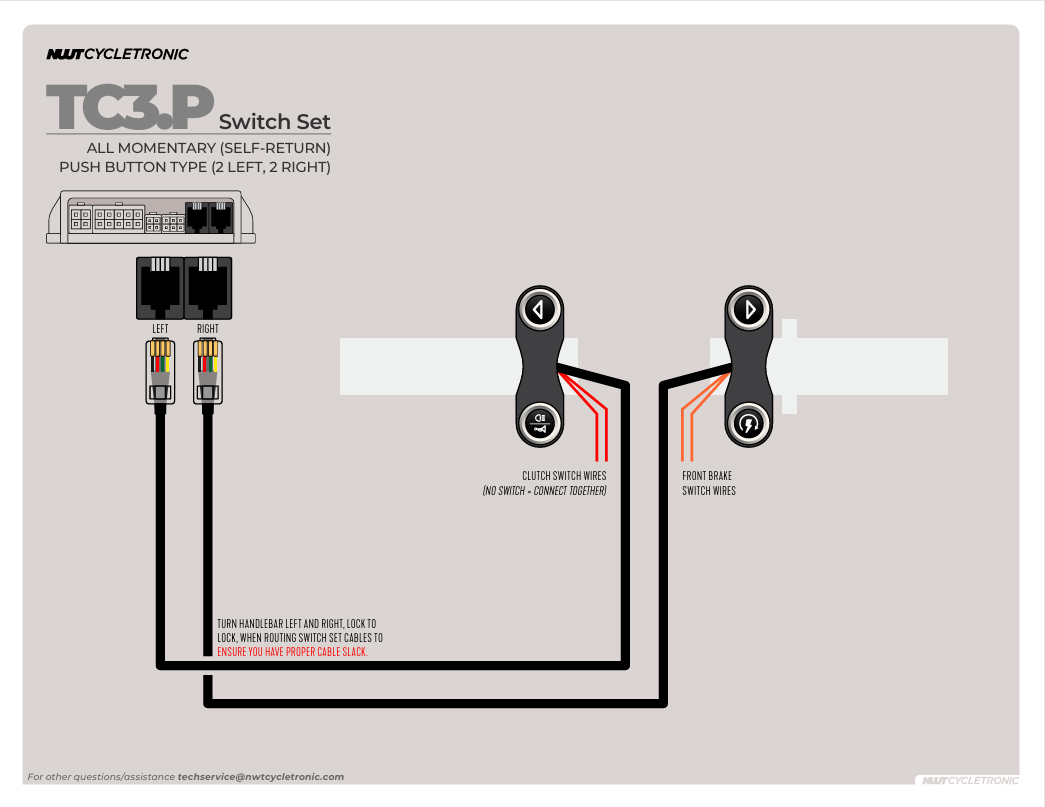

- Plug&Go handlebar switch set (push-button type)
- Handlebar switch designed for 7/8" (22mm) bars
- One-year replacement warranty and technical service
