Control Units
TC3 Systems
Only has the necessary features from the X3 Control Hubs but still have everything you need for a fully functional and efficient electrical wiring. Same difference like the X3, is your choice of handlebar switch set option:
TC3.P
CONTROL HUB

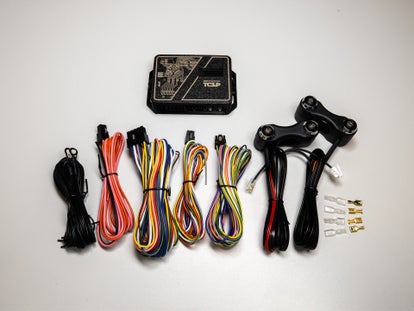

Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation
4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimised for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Enhanced engine power protection with quick blow fuse
Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning (Selectable)
Onboard digital flasher (Selectable)
Intelligent directional switching signal light
"PARK" position light feature (Brake light)
Master light control (Headlight only)
Sensor inputs
Dash gauge outputs (Standard)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Plug&Go handlebar switch set (Push button type)
Handlebar switch size (7/8",22mm)
1 year replacement warranty & tech service
Is this correct for my build?
(Include: Make, model, year of bike)
techservice@nwtcycletronic.com
TC3.M
CONTROL HUB
Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation
4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimised for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Enhanced engine power protection with quick blow fuse
Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning
Onboard digital flasher
Intelligent directional switching signal light
"PARK" position light feature (Brake light)
Master light control
Sensor inputs
Dash gauge outputs (Standard)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Plug&Go handlebar switch set (Harness only)
DIY fully configurable handlbar switch input
Handlebar switch size/type (DIY)
1 year replacement warranty & tech service
Is this correct for my build?
(Include: Make, model, year of bike)
techservice@nwtcycletronic.com
TC3.S
CONTROL HUB
Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation
4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimized for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Enhanced engine power protection with quick blow fuse
Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning (Selectable)
Onboard digital flasher (Selectable)
Intelligent directional switching signal light
"PARK" position light feature (Brake lights)
Master light control
Sensor inputs
Dash gauge outputs (Standard)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Plug&Go handlebar switch set (Standard/factory style)
Handlebar switch size (7/8",22mm)
1 year replacement warranty & tech service
Is this correct for my build?
(Include: Make, model, year of bike)
techservice@nwtcycletronic.com
X3 Systems
Electricals should be one of the final steps in your bike build—after the mechanicals are complete and just before final tuning.
The X3 Systems offer three fully integrated Control Hubs, each with a complete wiring harness designed for a ground-up build. The only difference? Your choice of handlebar switch set.
X3.P Control Hub "New Product"
X3.P Control Hub "New Product"
X3.P
CONTROL HUB
Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation
4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimised for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Charging system monitoring with fault audible notification
Enhanced engine power protection with quick blow fuse
Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning (Selectable)
Automatic brake light HOLD (Selectable)
Onboard digital flasher (Selectable)
Intelligent directional switching signal light
Signal light time out auto off
DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
"PARK" position light feature (Hazard lights)
Master light control (Headlight only)
Sensor inputs
Auxiliary sensor input/output
Dash gauge outputs (Enhanced)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Single wire PWM taillight output
Sequential/self flashing signal light capable
Plug&Go handlebar switch set (Push button type)
Handlebar switch size (7/8",22mm)
1 year replacement warranty & tech service
Is this correct for my build?
(Include: Make, model, year of bike)
techservice@nwtcycletronic.com
X3.M Control Hub "New Product"
X3.M Control Hub "New Product"
X3.M
CONTROL HUB
Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation
4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimized for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Charging system monitoring with fault audible notification
Enhanced engine power protection with quick blow fuse
Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning (Selectable)
Automatic brake light HOLD (Selectable)
Onboard digital flasher (Selectable)
Intelligent directional switching signal light
Signal light time out auto off
DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
"PARK" position light feature (Hazard lights)
Master light control
Sensor inputs
Auxiliary sensor input/output
Dash gauge outputs (Enhanced)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Single wire PWM taillight output
Sequential/self flashing signal light capable
Plug&Go handlebar switch set (Harness only)
DIY fully configurable handlbar switch input
Handlebar switch size (DIY)
1 year replacement warranty & tech service
Is this correct for my build?
(Include: Make, model, year of bike)
techservice@nwtcycletronic.com
X3.S Control Hub "New Product"
X3.S Control Hub "New Product"
X3.S
CONTROL HUB
Complete electrical control hub
Atmel 8-bit AVR® RISC-based microcontroller
Trench type MOSFET powered
Solid State design for water-proof and shock-proof operation
4 layer PCB design utilizing SMD components
PTC smart fuse protection with auto reset
Optimized for LED lighting
On board "fly-back" protection circuit
AC/DC voltage runaway engine shutdown protection
Charging system monitoring with fault audible notification
Enhanced engine power protection with quick blow fuse
Complete color-coded wiring harness
No start ignition coil time-out power off
Starter motor safety lock out with anti-grind
Starter motor max crank time out
Brake light flash pre-warning (Selectable)
Automatic brake light HOLD (Selectable)
Onboard digital flasher (Selectable)
Intelligent directional switching signal light
Signal light time out auto off
DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
"PARK" position light feature (Hazard lights)
Master light control
Sensor inputs
Auxiliary sensor input/output
Dash gauge outputs (Enhanced)
Soft start headlight ON
Engine run monitoring
Multi-use internally protected power output
Single wire PWM taillight output
Sequential/self flashing signal light capable
Plug&Go handlebar switch set (Standard/factory style)
Handlebar switch size (7/8",22mm)
1 year replacement warranty & tech service
Is this correct for my build?
(Include: Make, model, year of bike)
techservice@nwtcycletronic.com
ST3.P Switch Translator
For riders who already have a fully functional motorcycle but wish to upgrade by replacing the standard switch set with push-button controls.
ST3.P – for Push-button Switch Set (DIY, self-supplied)
SWITCH CONTROL MODULE ST3.P
SWITCH CONTROL MODULE ST3.P
ST3.P Switch Translator
For riders who already have a fully functional motorcycle but wish to upgrade by replacing the standard switch set with push-button controls.
ST3.P – for Push-button Switch Set (DIY, self-supplied)
Product Details
The ST3.P is a small handlebar switch controller translator.
All the wiring is simple and done close to the old handlebar switch connectors. Just remove the old handlebar switch, map the wires and connect to the ST3.P. Wire up some new push buttons and back to riding.
This new controller will allow for all types of push buttons and a combination of buttons - 4 or 6, latching and/or momentary. All up to you. No programming, just a few dip switches to set for your type of buttons. The ST.P utilises all your existing working electrical parts. Positive type, negative type, doesn't matter. All the ST3.P does is, translate the old standard switch set to push-buttons and all the wiring is done at l place. You can even revert back to the factory switch set.
If your bike did not come with hazard light function, now you have one. The ST3.P has Intelligent Directional Signal Light Switching. We even gave it the Over Voltage Engine Shutdown function - when it detects that your charging system is overloading, the hub will shut your engine down, turn on the hazard lights and turn on the high beam to dissipate the excess voltage. We thought some of the great features of our TC3 should be included in the ST.P.
With the ST3.P, you can now add some custom mods to your ride without lots of work nor lots of money.
FEATURES
- complete wiring control hub
- standard type handlebar switch controls (Type-S)
- mounting hardware
- input wires
- dash output wires
- built in throttle tube provision
- 2-year replacement warranty
Features
- complete wiring control hub
- push button handlebar switch controls (Type-P)
- throttle assembly
- mounting hardware
- input wires
- dash output wires
- 2-year replacement warranty
Features
- complete wiring control hub
- multiplex handlebar switch buttons (Type-M)
- throttle assembly
- mounting hardware
- input wires
- dash output wires
- 2 year replacement warranty
